Type 1 AC Tethered Charging Cable

Since its establishment, the company has adhered to the development concept of delivering high-quality Type 1 AC Tethered Charging Cable, and has independently developed European standard products and American standard products. In the future development, adhere to the bottom line of quality benchmark, reasonable price, closely follow the market development trend and customer demand.

Send Inquiry

Product Description

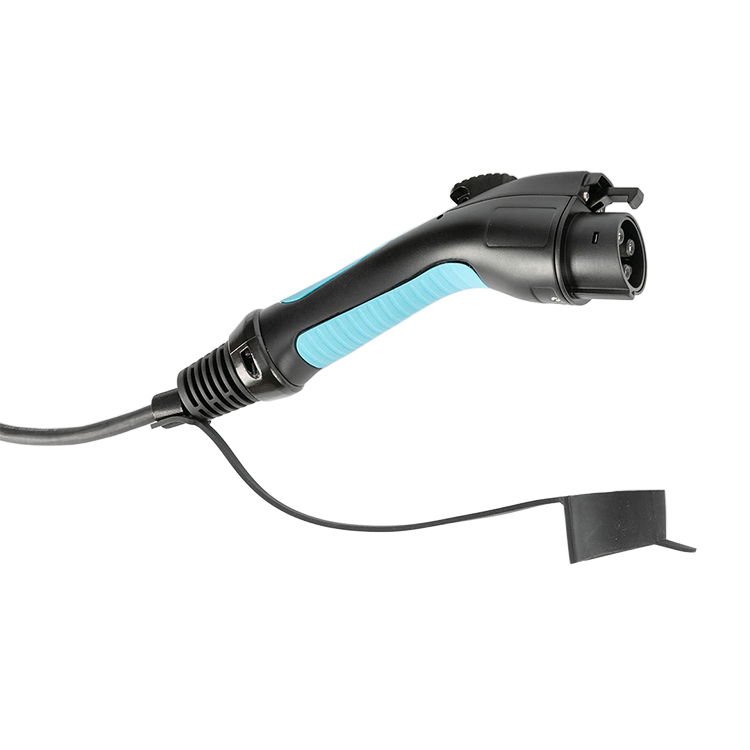

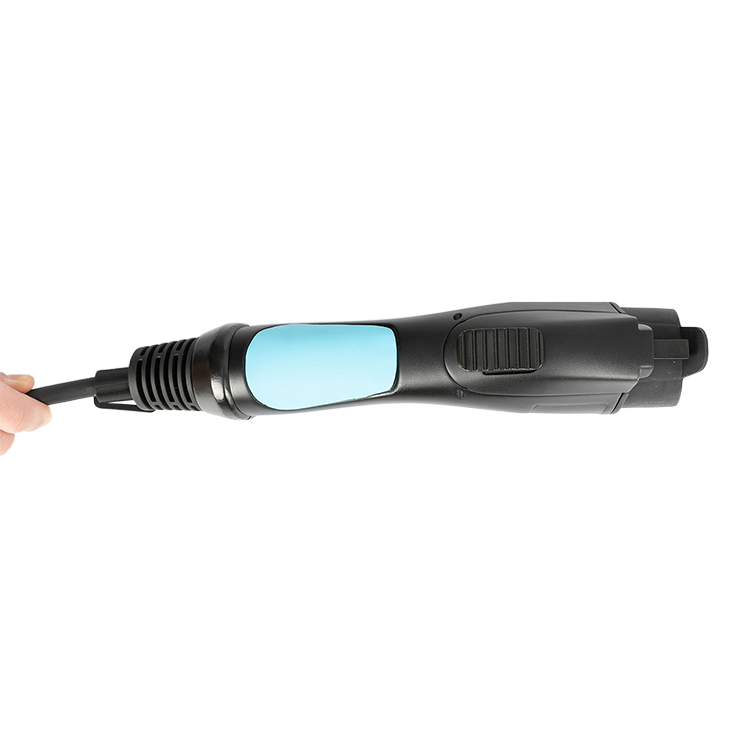

Hot selling MSDT-TEC® Type 1 AC Tethered Charging Cable, AC charging cable with vehicle charging connector and open cable end, with protective cap, Housing color black, for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, for installation at charging stations for electromobility (EVSE). Type 1 AC Tethered Charging Cable has been satisfied by many customers.

MSDT-TEC® Type 1 AC Tethered Charging Cable Features and Advantages

MSDT-TEC® Type 1 AC Tethered Charging Cable conforms to the provisions and requirements of IEC62196.2-2016. Suitable for Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging.

Mechanical life: Insertion and Extraction,10000 times. Insertion and Extraction Force＜100N. Impact resistance: be able to afford 1.5m drop.

Integrated handle structure with beautiful shape, no need for riveting. Ensure better waterproof performance and electrical performance. Hand-held design conform to ergonomic principle, plug conveniently.

Keep the laser logo space for customer. Customized services include customized tail wiring mode and cables of different colors.

MSDT-TEC® Type 1 AC Tethered Charging Cable Parameter

Product Type	Type 1 AC Tethered Charging Cable
Standards/regulations	IEC62196.1-2014 IEC62196.2-2016
Ambient temperature (operation)	-30 °C ... 50 °C
Withstand voltage	2500V AC 1MIN
Insulation resistance	>5MΩ 500V DC1MIN
Degree of protection	IP54 (When plugged in and ready to operate)
Degree of protection	IP55 (Protective cap)
Rated Current	16A,20A,32A
Rated Voltage	120V,250V
Phase	One Phase/Single Phase, Three Phase
Cable Length	Regular 5m, Custom length is acceptable
Raw Materials(Housing)	Thermoplastics, flame retardant grade UL94-0
Raw Materials(Contacts)	Copper alloy is plated with silver
Raw Materials(Cable)	TPU
Lead Time	It's usually three weeks. It's negotiable
