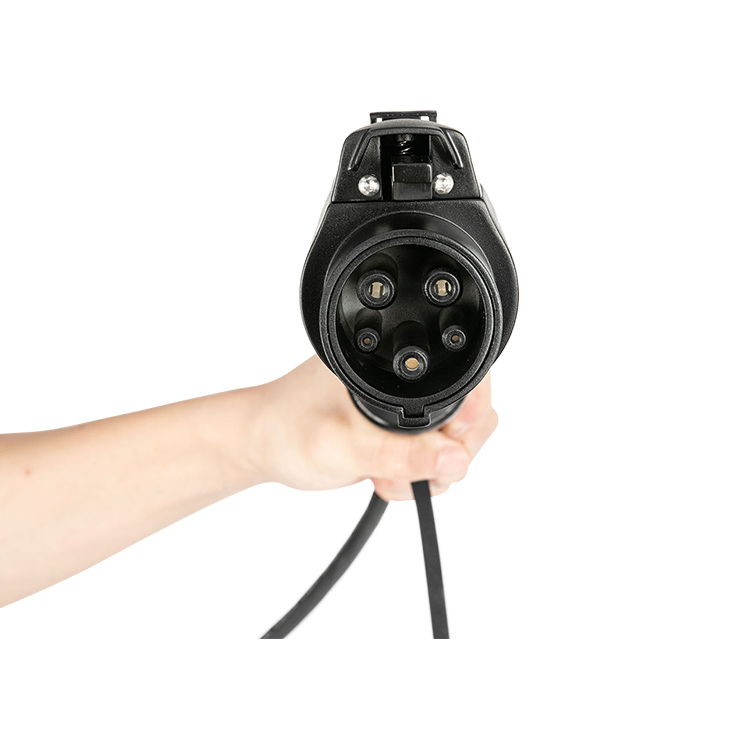

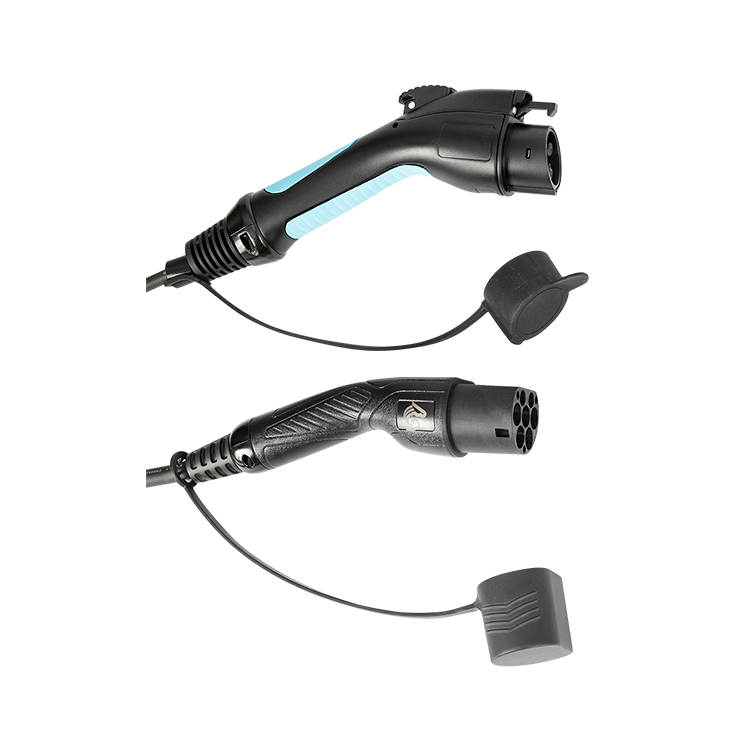

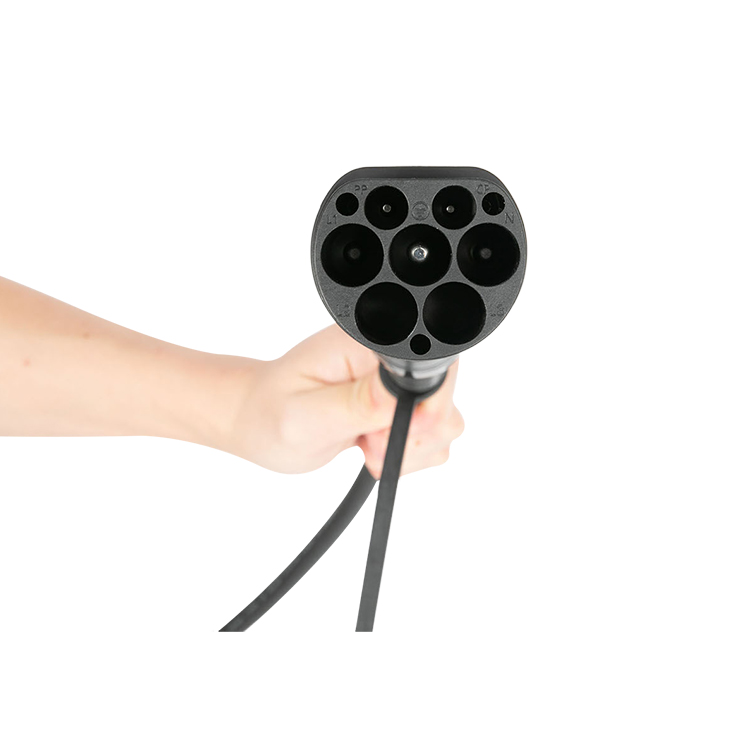

Type 2-Type 1 AC Charging Cable

MSDT New Energy Technology(Shanghai) Co. ,Ltd. is a Chinese supplier specializing in the production and export of MSDT-TEC® Type 2-Type 1 AC Charging Cable. In the increasingly fierce market competition, we adhere to the quality of no compromise, cost-effective products, fast delivery to meet the demands of customers.

Send Inquiry

Product Description

MSDT-TEC® Type 2-Type 1 AC Charging Cable with right price, Mobile AC charging cable with vehicle charging connector and infrastructure charging plug, with protective caps, Housing color black, for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, compatible with type 2 infrastructure charging sockets at charging stations for electromobility (EVSE). Buy MSDT-TEC® Type 2-Type 1 AC Charging Cable which is of high quality directly with low price from us.

MSDT-TEC® Type 2-Type 1 AC Charging Cable Features and Advantages

MSDT-TEC® Type 2-Type 1 AC Charging Cable conforms to the standards and requirements of IEC62196.2-2016 and is ideal for charging your electrical car Type2-Type1 to a maximum power of 7.4 KW.

Mechanical life: Insertion and Extraction,10000 times. Insertion and Extraction Force＜100N. Impact resistance: be able to afford 1.5m drop.

Integral handle structure, no riveting, easy to assemble. Excellent internal waterproof protection performance. The housing can effectively insulate water from body and enhance the safety level even in bad weather or special conditions.

Keep the laser logo space for customer. Customized services include customized tail wiring mode and cables of different colors. We can provide professional service and better price for you.

MSDT-TEC® Type 2-Type 1 AC Charging Cable Parameter

Product Type	Type 2-Type 1 AC Charging Cable
Standards/regulations	IEC62196.1-2014 IEC62196.2-2016
Ambient temperature (operation)	-30 °C ... 50 °C
Withstand voltage	2500V AC 1MIN
Insulation resistance	>5MΩ 500V DC1MIN
Degree of protection	IP54 (When plugged in and ready to operate)
Degree of protection	IP55 (Protective cap)
Rated Current	16A,32A
Rated Voltage	250V
Phase	One Phase/Single Phase, Three Phase
Cable Length	Regular 5m, Custom length is acceptable
Raw Materials(Housing)	Thermoplastics, flame retardant grade UL94-0
Raw Materials(Contacts)	Copper alloy is plated with silver
Raw Materials(Cable)	TPU
Lead Time	It's usually three weeks. It's negotiable
