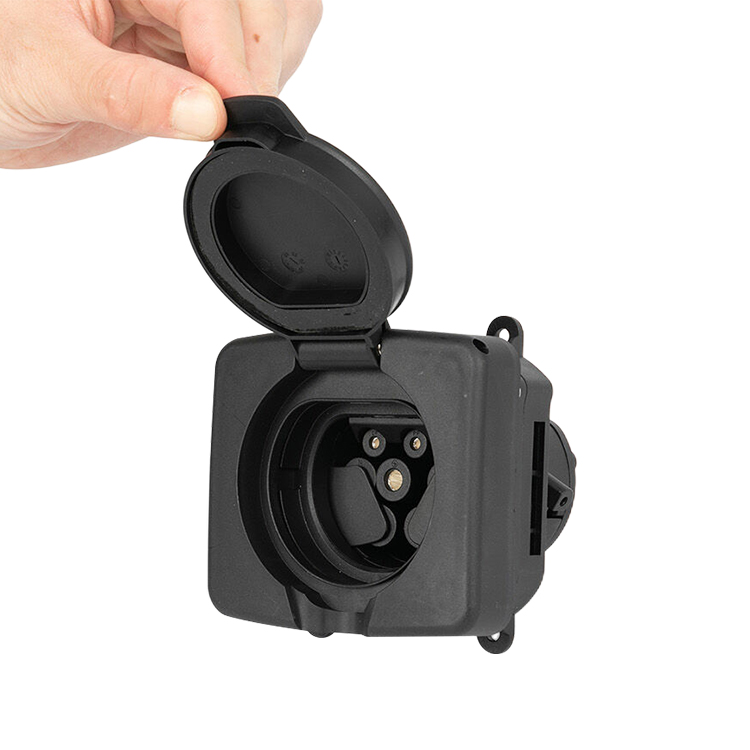

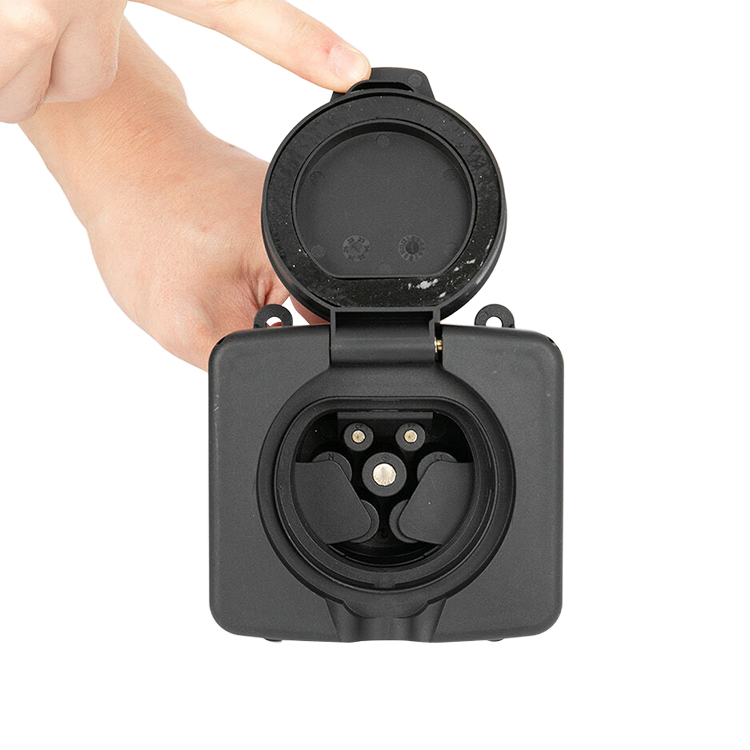

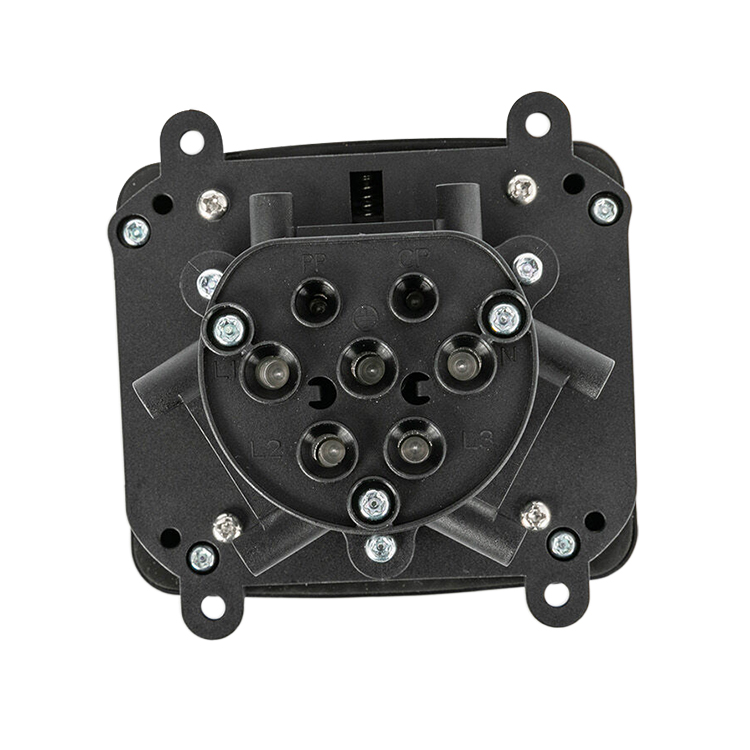

Type 2 AC Charging Socket with Shutter

High quality MSDT-TEC® Type 2 AC Charging Socket with Shutter is offered by China manufacturer called MSDT New Energy Technology (Shanghai) Co. ,Ltd. The company has a strong R & D team, focusing on the development of new products.In 2021, we independently developed MSDT-TEC® Type2 AC Charging Socket with Shutter, which obtained orders from many European customers in less than a year.

Send Inquiry

Product Description

China MSDT-TEC® Type 2 AC Charging Socket with Shutter, Socket Outlet, front protective cover screw connection, Optimized insertion and withdrawal forces, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs. Full certificates such as TUV, CB, CE and UKCA.

MSDT-TEC® Type 2 AC Charging Socket with Shutter Features and Advantages

MSDT-TEC® Type 2 AC Charging Socket with Shutter conforms to the provisions and requirements of IEC62196.2-2016. It can charge all EV manufactured in Europe, correctly and effectively. It is compatible with all the Type 2 charging stations.

Mechanical life: Insertion and Extraction,10000 times. Insertion and Extraction Force＜100N.

Type 2 AC Charging Socket with Shutter is available in two different mounting sizes. which can be installed on the left side, the right side or the front of it.

Keep the laser logo space for customer. Customized services such as cables of different lengths and end of treatment, drain hole, NTC and mechanical lock are according to the customer requirements.

MSDT-TEC® Type 2 AC Charging Socket with Shutter Parameter

Product Type	Type 2 AC Charging Socket
Standards/regulations	IEC62196.1-2014 IEC62196.2-2016
Ambient temperature (operation)	-30 °C ... 50 °C
Withstand voltage	2500V AC 1MIN
Insulation resistance	>5MΩ 500V DC1MIN
Degree of protection	IP54
Rated Current	16A,32A
Rated Voltage	250V,480V
Phase	One Phase/Single Phase, Three Phase
Cable Length	The wire length and end of treatment are according to the customer requirement
Raw Materials(Housing)	Thermoplastics, flame retardant grade UL94-0
Raw Materials(Contacts)	Copper alloy is plated with silver
Lead Time	It's usually three weeks. It's negotiable
