Type 2 AC Charging Socket

MSDT New Energy Technology(Shanghai) Co.,Ltd. is a professional manufacturer of MSDT-TEC Type 2 AC Charging Socket in China. We independently developed MSDT-TEC Type 2 AC Charging Socket, and the product has obtained TUV, CE, CB and UKCA certification.

Send Inquiry

Product Description

Durable MSDT-TEC Type 2 AC Charging Socket, Socket Outlet, front protective cover screw connection, Optimized insertion and withdrawal forces, For charging electric vehicles (EV) with alternating current (AC), Compatible with infrastructure charging plugs. Type 2 AC charging socket 16A and 32A match with MSDT-TEC Standard Mechanical Lock and Compact Mechanical Lock.

MSDT-TEC® Type 2 AC Charging Socket Features and Advantages

MSDT-TEC® Type 2 AC Charging Socket conforms to the standards and requirements of IEC62196.2-2016. Material performance is reliable, flame retardant, pressure resistance, wear resistance, impact resistance.-

Mechanical life: Insertion and Extraction,10000 times. Insertion and Extraction Force＜100N.

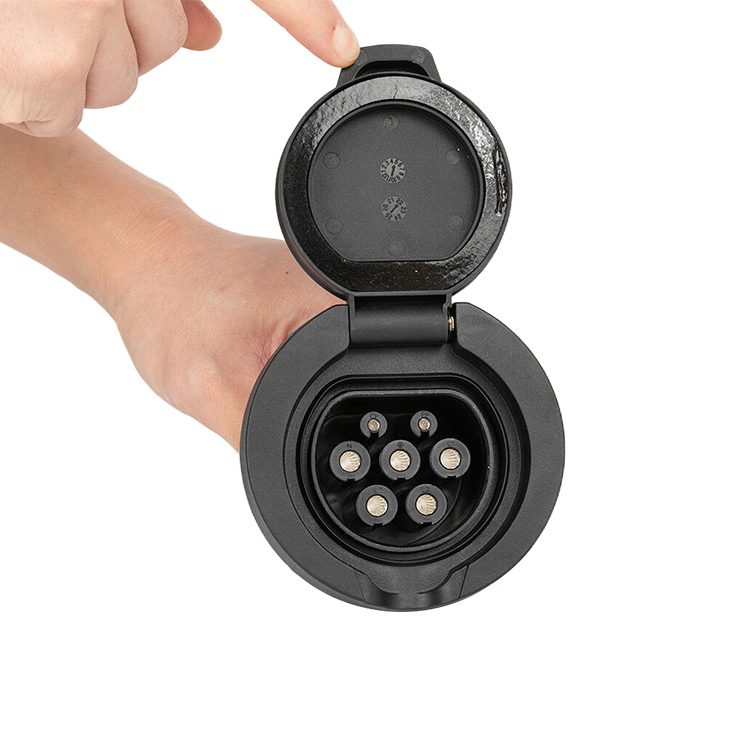

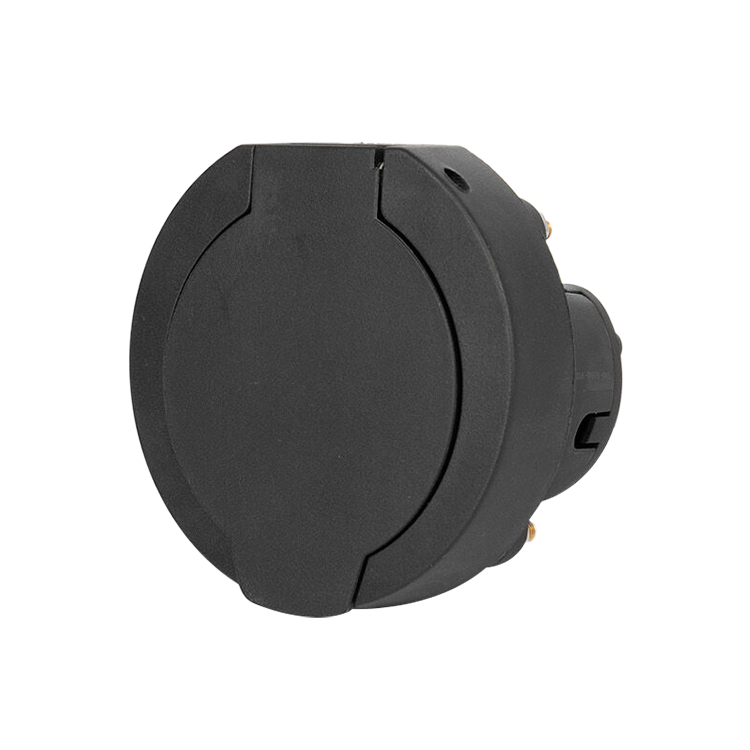

Type 2 AC Charging Socket with beautiful appearance and protective cover, which can be installed on the left side, the right side or the front of it.

Keep the laser logo space for customer. Customized services such as cables of different lengths and end of treatment, drain hole, NTC and mechanical lock are according to the customer requirements.

MSDT-TEC® Type 2 AC Charging Socket Parameter

Product Type	Type 2 AC Charging Socket
Standards/regulations	IEC62196.1-2014 IEC62196.2-2016
Ambient temperature (operation)	-30 °C ... 50 °C
Withstand voltage	2500V AC 1MIN
Insulation resistance	>5MΩ 500V DC1MIN
Degree of protection	IP54
Rated Current	16A,32A
Rated Voltage	250V,480V
Phase	One Phase/Single Phase, Three Phase
Cable Length	The wire length and end of treatment are according to the customer requirement
Raw Materials(Housing)	Thermoplastics, flame retardant grade UL94-0
Raw Materials(Contacts)	Copper alloy is plated with silver
Lead Time	It's usually three weeks. It's negotiable
